SCADA equipmentsfor alarm signals coding and repeating
We design and produce a wide range of rack equipments, based on TERNA Italian Electricity Board specifications, for SCADA alarms signals coding, repeating and isolation according to TERNA and ISA sequencing with electrical or magnetic memory, also for monitoring of alarm signals during emergency situation, self-supplied with internal batteries.
Alarm monitoring equipment
on specification TERNA LV1
Rack equipment for monitoring of 40 alarm signals, with electrical or magnetic memory plus 8 alarm signals without memory, with galvanic isolation 110Vdc/24Vdc for remote signalling.

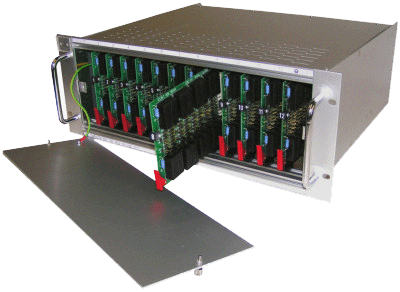

Alarm monitoring equipment
on specification TERNA LV11
Rack equipment for galvanic isolation 110Vdc/24Vdc with reed relays composed by 12 electronic boards having 8 alarm signals each with single contact. Presets by back-side screw terminals.

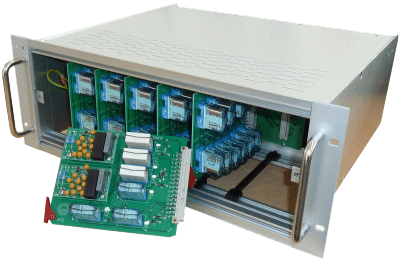

Alarm monitoring equipment
on specification TERNA LV6
Rack equipment for 10 alarms signals acquisition with local dashboard feed according to ISA sequencing.

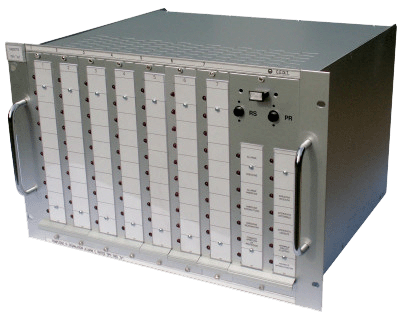

Alarm monitoring equipment
on specification TERNA TV1
Rack equipment for monitoring of 70 alarm signals, customizable with or without memory and with galvanic isolation 110Vdc/24Vdc for remote signalling.
Alarm monitoring equipment
on specification TERNA TV11
Rack equipment for galvanic isolation 110Vdc/24Vdc with reed relays composed by 12 electronic boards having 8 alarm signals each with double contact. Presets by jumpers on board.
Alarm monitoring equipment
Rack equipment for monitoring of alarm signals during emergency situation, self-supplied 24Vcc (2 Pb batteries and 110Vdc power supply)
|
|
