BXI

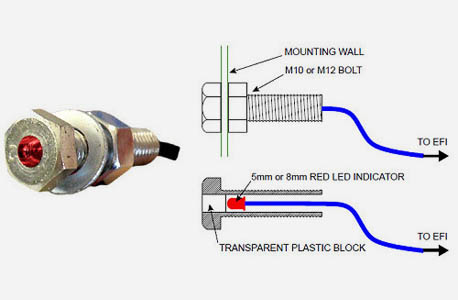

Bolt External Indicator Anti-vandal
- The BXI device is a remote flashing LED external indicator designed to be used with our range of earth fault indicators and phase fault indicators.
- BXI has bolt-type robust design, suitable for anti-vandal applications and can be easily mounted on panels or wall.
- The BXI device is self-powered from the main fault indicator unit.
C.E.DI.T. provides Pro MV EFI.06, the new earth fault indicator for Medium Voltage Network protection: a wide range of solutions to meet all the demands from low-cost devices up to complete and high-precision earth fault indicators.
General characteristics of earth fault indicators:
- Designed for the installation on Medium Voltage cells of electricity distribution network
- Local and remote signalling by flashing LED and SCADA relay contact to indicate when the earth current exceed the preset value
- Up to 4 level of trip current that can be selected by means of internal jumpers
- 4 reset modes: time-delay, 230Vac mains voltage, local and remote reset. The time-delay of automatic reset can be selected by internal jumpers
- Correct operation can be checked pressing the push-button on the front
- Self-powered by the internal lithium battery with 10 year lifetime and over 1000 hours flashing time
- Electronic module enclosed in IP55 box linked to the external current transformer
- CBCT CBCT ring–type split current transformer composed by two halves that can be installed without MV cables disconnection and held together by a metallic screw tie
